01
Garment map
Define artwork boundaries against pattern pieces and finished garment reference points.
Custom Menswear Manufacturing / OEM & ODM / Worldwide Delivery
hafiz@kaouyouclothing.comEnglish
PK-044 / Actual sample reference
This black washed T-shirt uses an oversized silhouette and a large brown landscape-like graphic mapped across the lower front and corresponding back area. It is a controlled placement treatment rather than an all-over print. Artwork boundaries, registration, fabric and finishing route require project approval.
- Fit direction
- Oversized / drop shoulder
- Material status
- Washed dark jersey to confirm
Mapped graphic placementLower-body print coverage
01
Actual sample shown
02
Custom development
03
Sample approval before bulk
04
Project-specific quotation

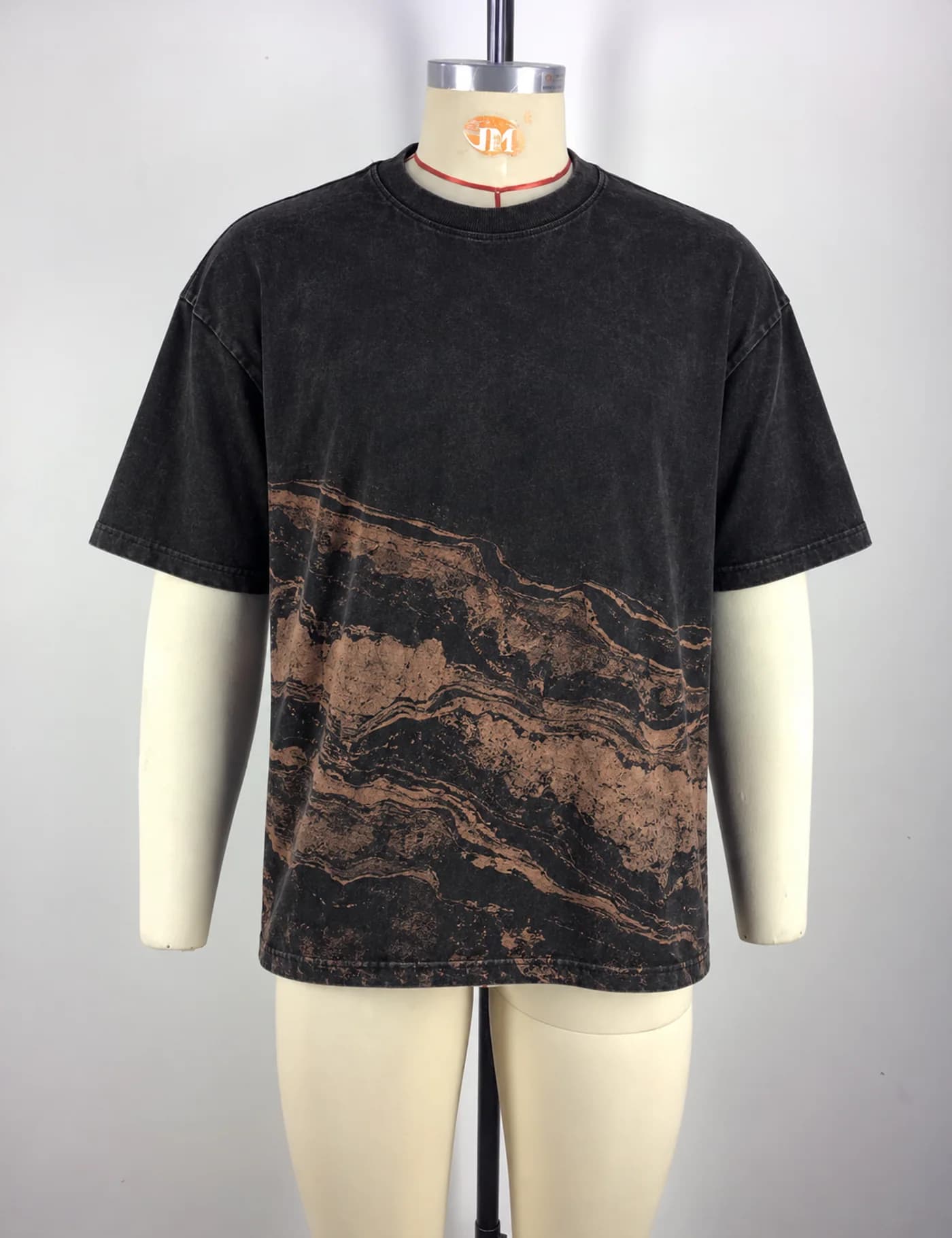

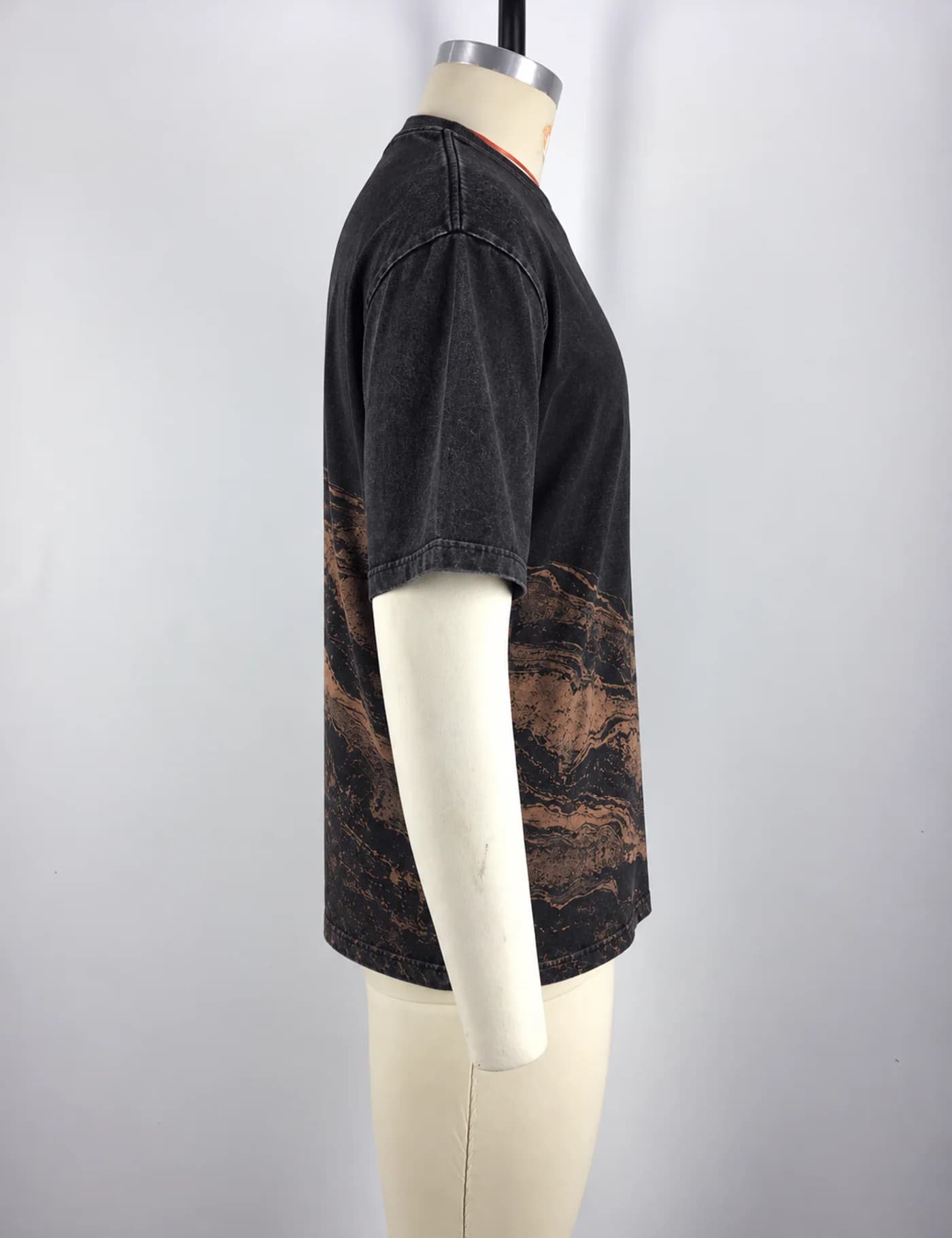

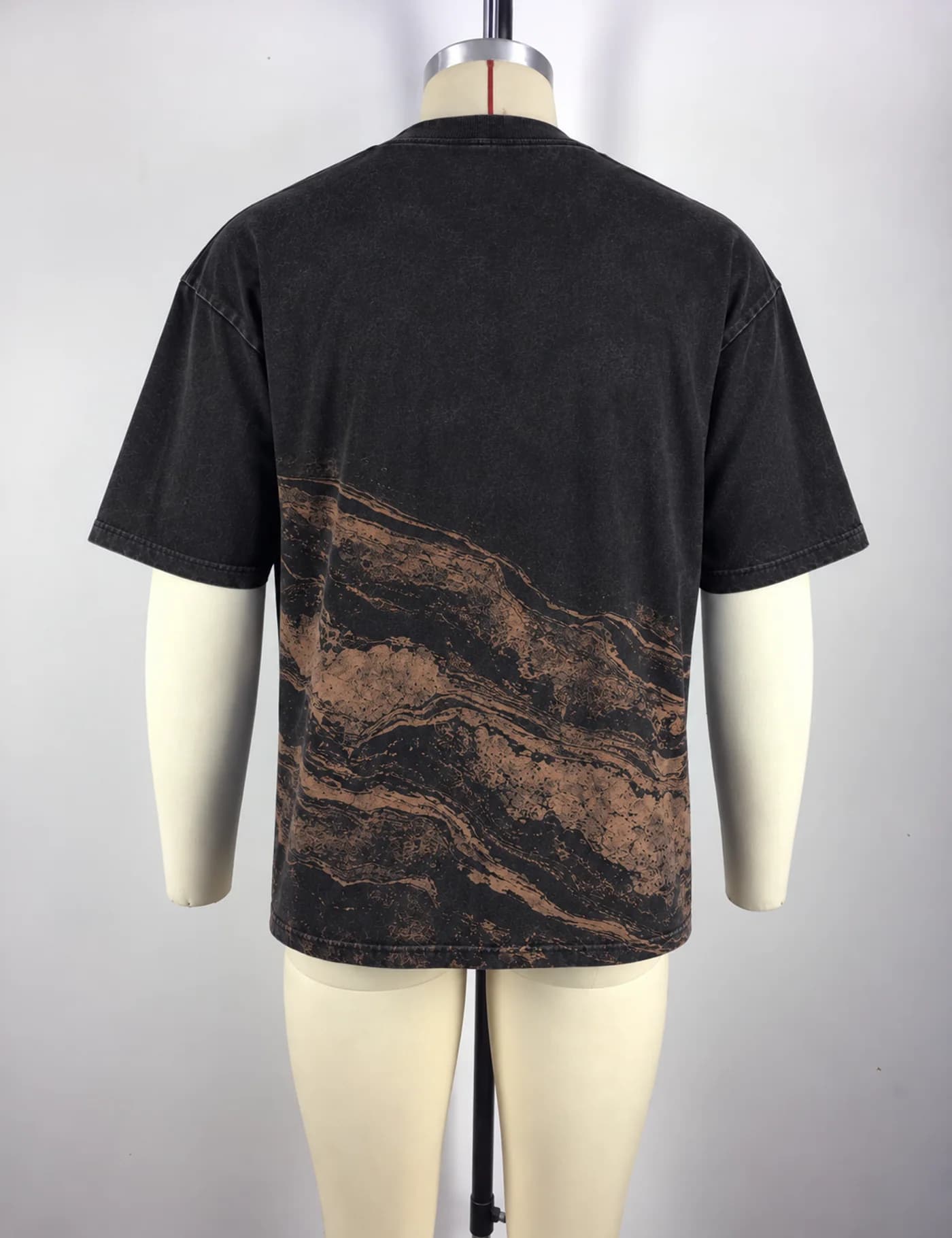

Actual sample evidence
Inspect the mapped lower-body graphic.
The physical views show the true artwork boundaries, placement heights, washed body and oversized proportions.
Visible on the sample
What this reference demonstrates
- 01Black washed oversized body with wide short sleeves
- 02Large brown graphic concentrated across the lower front
- 03Coordinated artwork placement continuing on the back
- 04Clear artwork boundary rather than full all-over coverage
- 05Tonal aged surface visible around seams and printed zones
Confirmed for your project
Decisions before sampling
- Jersey composition, finished weight and wash response
- Full-size artwork, garment map and print boundaries
- Color separation, print method and handfeel target
- Front-to-back placement tolerance and size grading strategy
- Approved black and brown color standards after finishing
- Measurements, quantities, labels and packing requirements
Customization map
Map artwork to the finished garment.
Large placement work requires pattern reference points, size rules and print tests rather than a generic flat mockup.
02
Oversized block
Approve shoulder, sleeve, width and length before finalizing artwork scale.
03
Print route
Select and test a method suitable for the artwork size, detail and required handfeel.
04
Size grading
Decide whether the graphic remains fixed or scales by garment size and document the result.
05
Washed palette
Approve garment shade and printed brown tones after the intended finishing process.
06
Bulk alignment
Create measurable placement tolerances for cutting, printing and final inspection.
Specification status
Visible artwork coverage, measurable production controls.
The sample establishes direction while print method, color and placement tolerances are project-defined.
- Product type
- Placement graphic T-shirt
- Visible fit
- Oversized with drop shoulder
- Visible finish
- Black washed surface
- Visible artwork
- Mapped lower front and back graphic
- Fabric / weight
- Confirmed to project brief
- Print setup
- Approved from mapped garment test
- MOQ
- Reviewed by artwork scale and print route
- Timing
- Confirmed after placement approval
Related product references
Compare more styles in this category.
Development path
From garment map to approved placement sample.
Fit, artwork boundaries, wash color and size behavior are confirmed before production.
- 01
Lock the garment block
Review fit, jersey, wash direction, artwork files and target quantities.
- 02
Build the placement map
Position artwork against seams, hem and side reference points for each size.
- 03
Run a mapped sample
Test color, detail, handfeel, boundaries and front-to-back relationship.
- 04
Approve the finished view
Sign garment shade, graphic scale, placement and measurements together.
- 05
Inspect by reference points
Control bulk graphics with documented positions and the approved sample.
Quality checkpoints
Control every graphic edge and reference point.
Inspection focuses on placement, front-and-back balance, color, handfeel and finished dimensions.
Artwork boundaries
Lower-body graphic edges checked against the approved garment map.
Front and back relationship
Placement heights and visual continuity compared across both garment sides.
Print surface
Color, detail and handfeel checked after washing.
Size consistency
Artwork scaling or fixed-size rules verified by size.
Finished fit
Oversized measurements and garment balance confirmed after processing.
Final presentation
Marks, ink transfer, labels, folding and packing inspected before release.
Buyer questions
Before you request a sample.
01Is this an all-over print?
No. The reference uses large mapped placement graphics with defined boundaries on the lower front and back.
02Can the artwork cross a side seam?
It can be evaluated, but the production route and achievable alignment depend on the artwork and construction map.
03Can the graphic scale change by size?
Yes. Fixed or graded artwork rules are agreed and documented before bulk.
04Can we change the brown color?
Yes. Final print colors are approved on the selected washed jersey.
05What is needed to begin?
Provide full artwork files, placement intent, size chart, fabric and wash direction, quantities and branding.
